Create Data Lake

S3 Data Lake for IoT Messages

The Weather Platform uses Amazon S3 as a simple data lake to store IoT messages from weather sensors. This is the primary storage for raw sensor data.

What is the Data Lake?

The data lake is an S3 bucket named itea-weather-data-lake-storage that stores:

  • Raw IoT sensor messages (JSON format)
  • AWS Glue ETL scripts for data processing

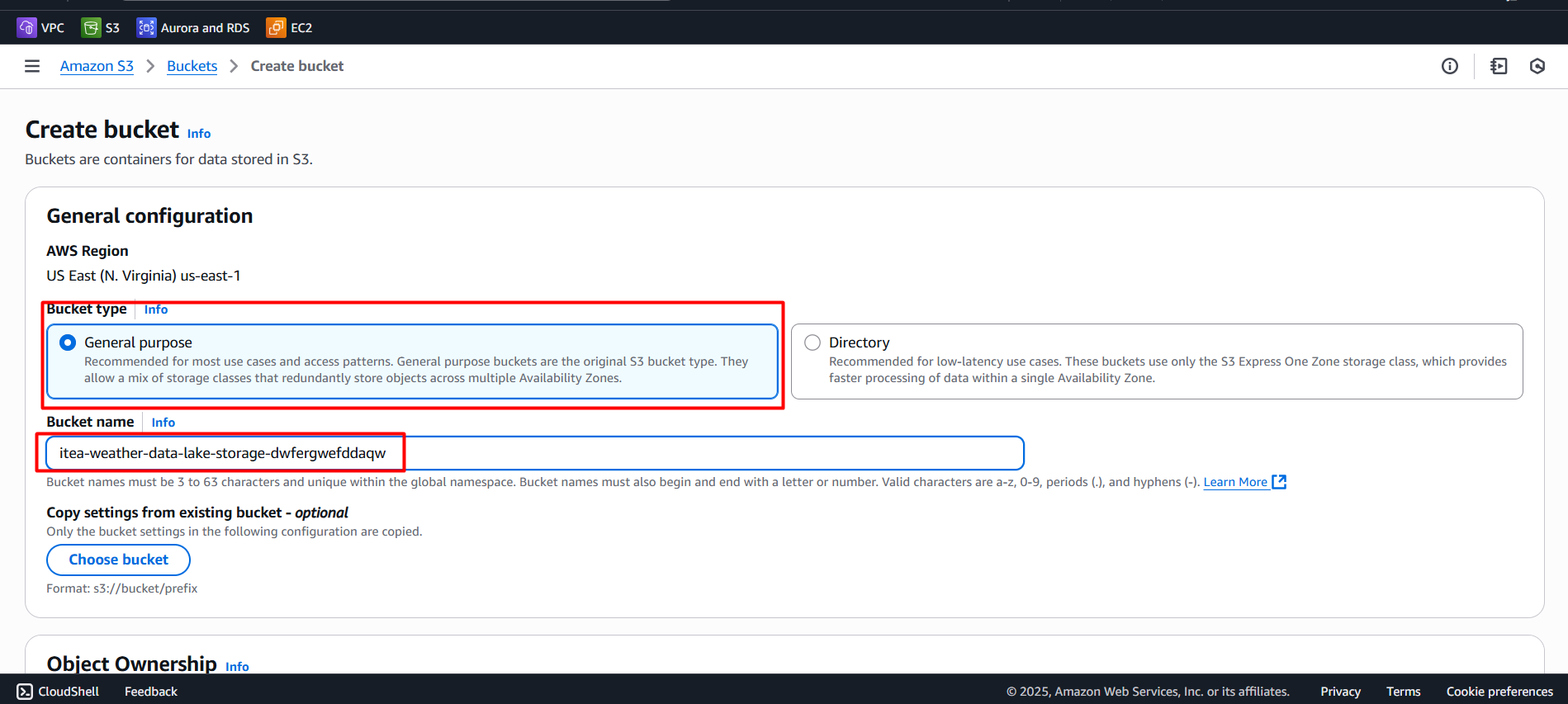

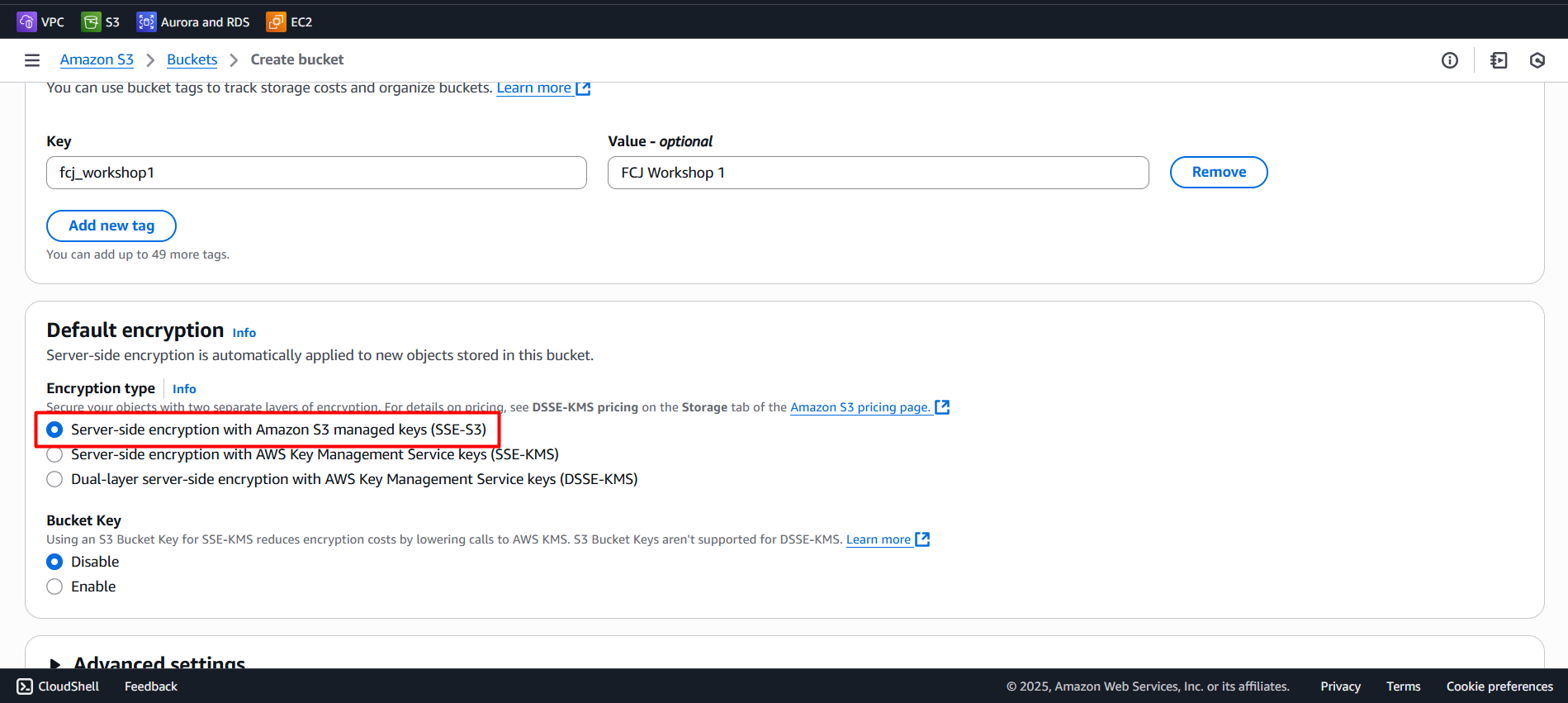

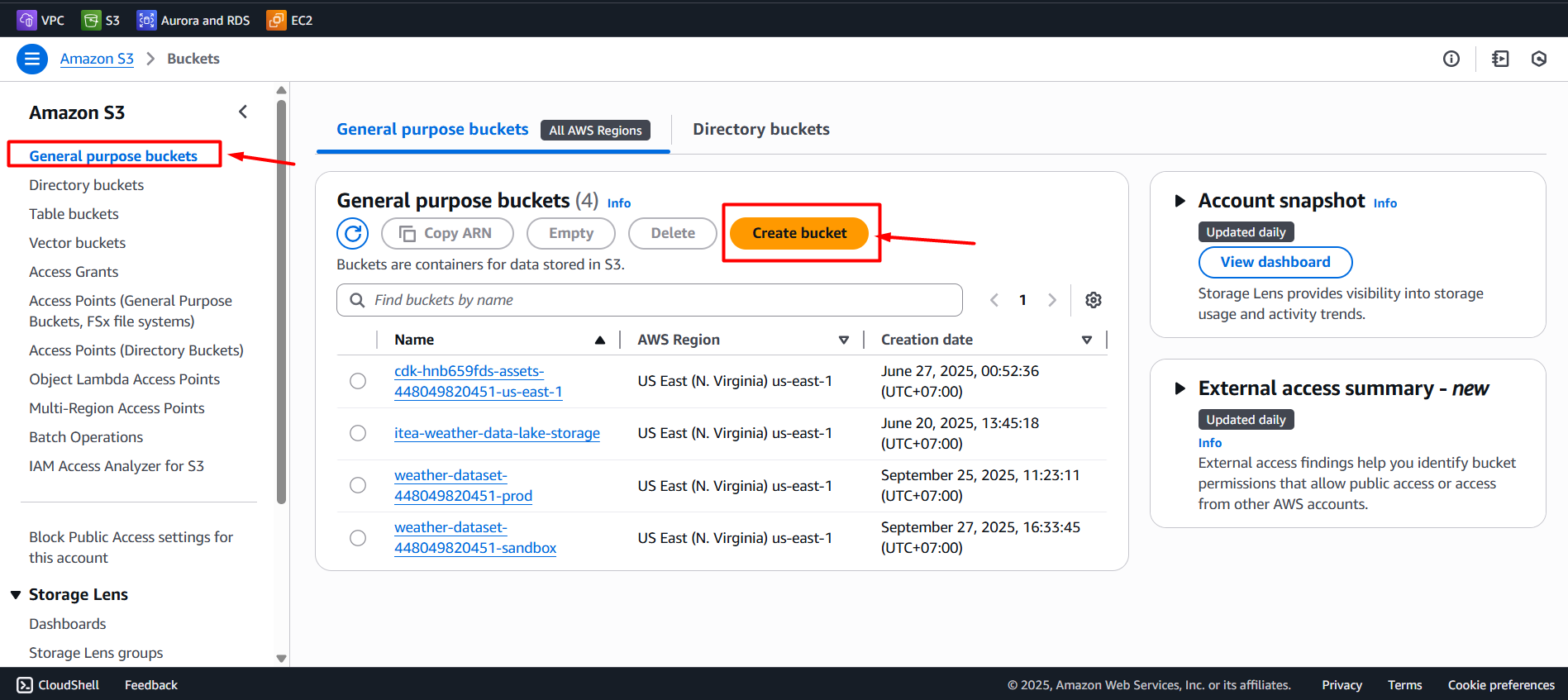

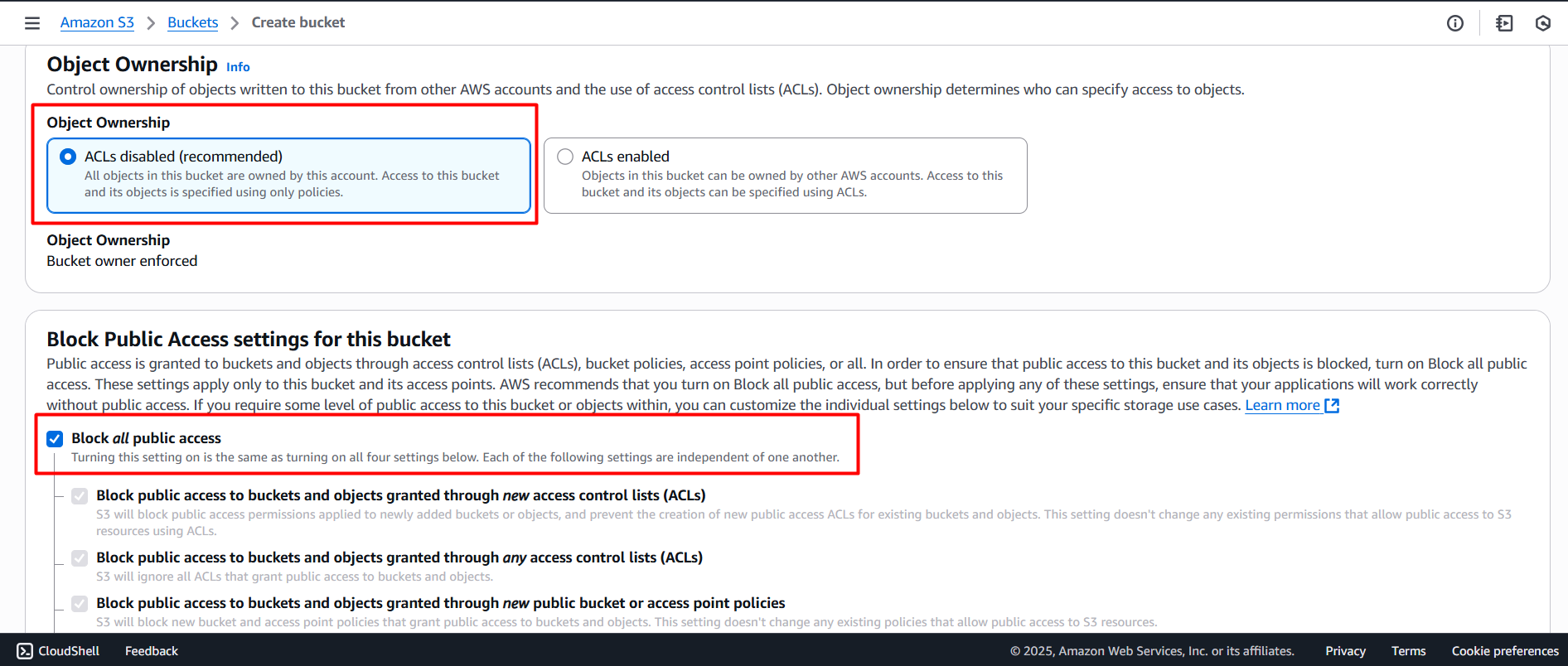

Create S3 Bucket

Create Bucket Create Bucket Create Bucket Create Bucket Click Create bucket to finish.

Data Lake Bucket Structure

The data lake is organized with the following folder structure:

itea-weather-data-lake-storage/
├── raw-data/                   # Raw IoT sensor messages
│   └── weatherPlatform/        # Weather platform data
│       └── telemetry/          # Telemetry data organized by location
│           ├── {location-1}/   # e.g., "itea-lab-room-a"
│           │   └── sensor-data.json
│           ├── {location-2}/   # e.g., "outdoor-station-1"
│           │   └── sensor-data.json
│           └── {location-n}/   # Additional locations
│               └── sensor-data.json
└── glue-scripts/               # AWS Glue ETL scripts
    └── weather-transform.py    # Data transformation script

IoT Message Storage

When IoT devices send weather data, the messages are stored in:

raw-data/weatherPlatform/telemetry/{location}/

Where {location} is the specific location identifier (e.g., itea-lab-room-a, outdoor-station-1).

Important Notes

Critical: S3 bucket names must be globally unique across all AWS accounts. Add your name or timestamp to ensure uniqueness: itea-weather-data-lake-storage-yourname

Backend Code Update Required: The Amplify backend code has hardcoded bucket names that must be updated to match your unique bucket name.

This data lake bucket is separate from the processed dataset bucket. Raw IoT sensor data flows into this bucket, while processed datasets are stored in a different bucket.

Update Backend Code

After creating your unique bucket name, you must update the hardcoded references in the Amplify backend:

Files to Update:

  1. amplify/backend.ts (Lines 233, 272, 273, 318):

    // Change from:
sourceBucketName: "itea-weather-data-lake-storage";

// To your unique name:
sourceBucketName: "itea-weather-data-lake-storage-yourname";

  2. amplify/functions/getTotalReadings/handler.ts (Line 16):

    // Change from:
const bucket = "itea-weather-data-lake-storage";

// To your unique name:
const bucket = "itea-weather-data-lake-storage-yourname";

  3. amplify/custom/WeatherDataGlue/resource.ts (Lines 65, 66, 195):

    // Change all S3 ARNs and paths from:
arn:aws:s3:::itea-weather-data-lake-storage
s3://itea-weather-data-lake-storage/glue-scripts/

// To your unique name:
arn:aws:s3:::itea-weather-data-lake-storage-yourname
s3://itea-weather-data-lake-storage-yourname/glue-scripts/

Use Find & Replace in your code editor to quickly update all instances of itea-weather-data-lake-storage to your unique bucket name.

Next Steps

With the S3 data lake configured:

  • IoT devices send messages that get stored in raw-data/weatherPlatform/telemetry/{location}/
  • AWS Glue scripts in glue-scripts/ process the raw data
  • Processed results are stored in a separate dataset bucket
